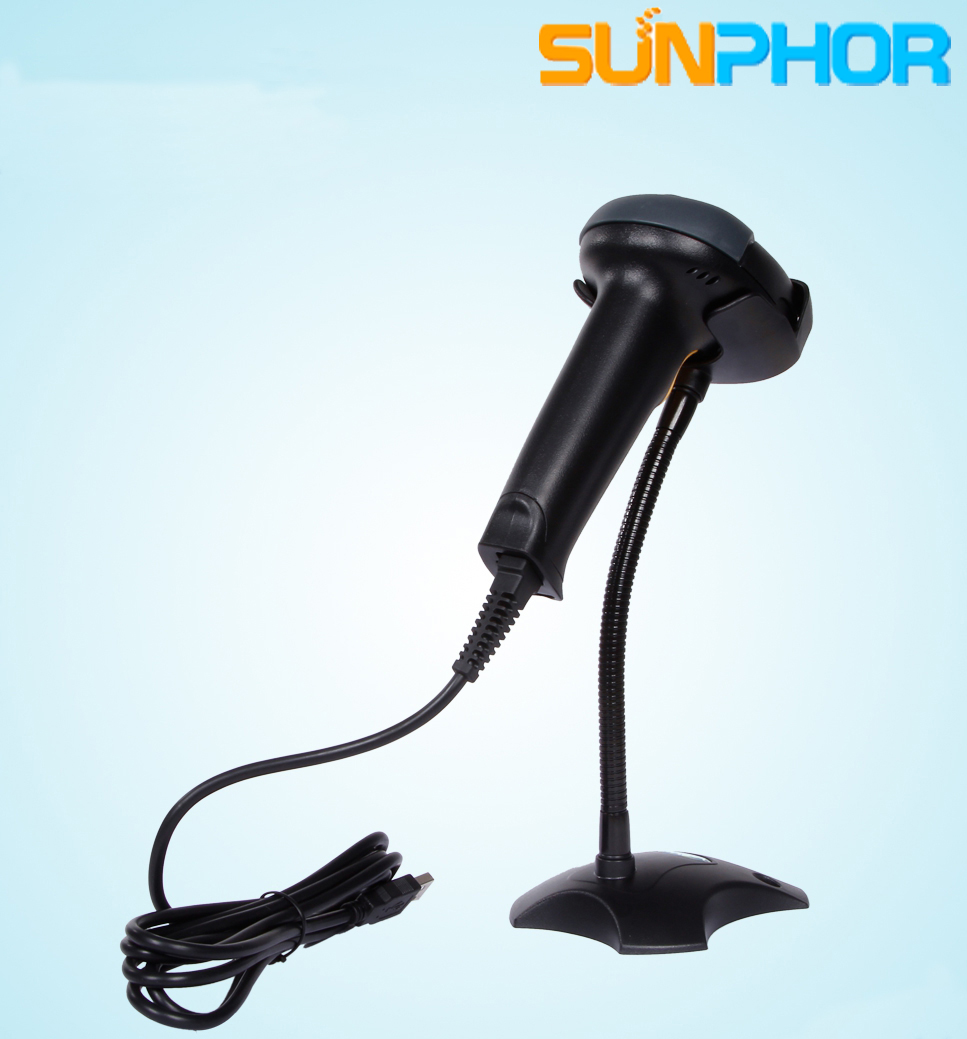

Сканер штрих-кода Sunphor SUP-775 лазерный, автоматический, сгибающаяся подставка, черный

Performance Characteristics

Light Source:

650nm visible

Scan Rate:

200 scans per second

CPU

32 bit

Reading Distance

2.5 ~600mm (100% UPC/EAN)

Width of Scan

50mm@60mm, 220mm@200mm

Scanner Type:

Bi-directional

Operation mode

Auto Sense

Resolution:

3mil high resolution series / 5mil long depth field series

Print Contrast Minimum:

30%, minimum reflective difference

Decode Capability:

UPC/EAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5, MSI/Plessey, UK/Plessey, UCC/EAN 128, Chinese code, GS1 DataBar (RSS)series

Scanning Angle

±65°(tilt); ±60°(pitch); ±42°(yaw)

Physical Characteristics

Interfaces Supported:

PS2, RS232, USB for option

Voltage:

5V DC±5%

Current:

85 mA (Operating); 100 (Max)

Indicator

Beeper, LED

Material

ABS+PC

Stand

With

Dimensions:

156*68*83 mm  (L*W*H)

Weight:

235g

Color:

Grey or black

User Environment

Operating Temperature:

0℃~45℃

Storage Temperature:

-40℃~60℃

Humidity:

5%-90%  (non-condensing)

Electrostatic Discharge:

Conforms to +/-15KV air discharge and +/-8KV of contact discharge

Ambient Illumination

0 ~ 100,000 LUX

Drop Specifications:

Withstands multiple 1.5m drops to concrete surface

Laser classification

EN60825-1, Class 1
